% روی خدمات پس از فروش ما حساب کنید %

شرکت مهندسی و بازرگانی پارسیان سروپایش

نماینده رسمی فروش و خدمات پس از فروش محصولات ABB آ.ب.ب فنلاند در ایران

درایوهای AC سری ACS800

مشخصات فنی و معرفی اجمالی محصول :

• نام کالا :درایو AC ، اینورتر ، کنترل دور موتور القایی یا متناوب  AC
• مدل درایو :ای سی اس 800
• شرکت سازنده : آ.ب.ب
• کشور سازنده : فنلاند
• محدوده توان :0.55 تا 5600  کیلووات
• شرح مختصر :درایوهای AC سری ACS 800 از سری درایوهای بسیار پر قدرت و پرکاربرد هستند که توسط تکنولوژی کنترلی DTC توانایی کنترل انواع بارهای صنعتی گشتاور بالا را دارند ، در حال حاضر به تدریج درایوهای سری ACS850 و ACS880 در حال جایگزین شدن بجای این درایوها هستند.  درایوهای ACS800 بسته به نوع کاربرد و توان درایو در مدلهای مختلفی تولید می شوند که عبارتند از:

  ACS800-01 , ACS800-11 , ACS800-01 , ACS800-31 , ACS800-02 , ACS800-07 , ACS800-07LC , ACS800-17 , ACS800-17LC , ACS800-37 , ACS800-37LC

• کاربردها :قلاب جرثقیل ، فرمینگ - سایزینگ ، نورد و کلیه کاربردهای سنگین صنعتی
• وضعیت تولید :در حال توقف تولید
• محصول جایگزین آتی : ACS800 , ACS880
• وبسایت شرکت سازنده :   http:/new.abb.com/drives

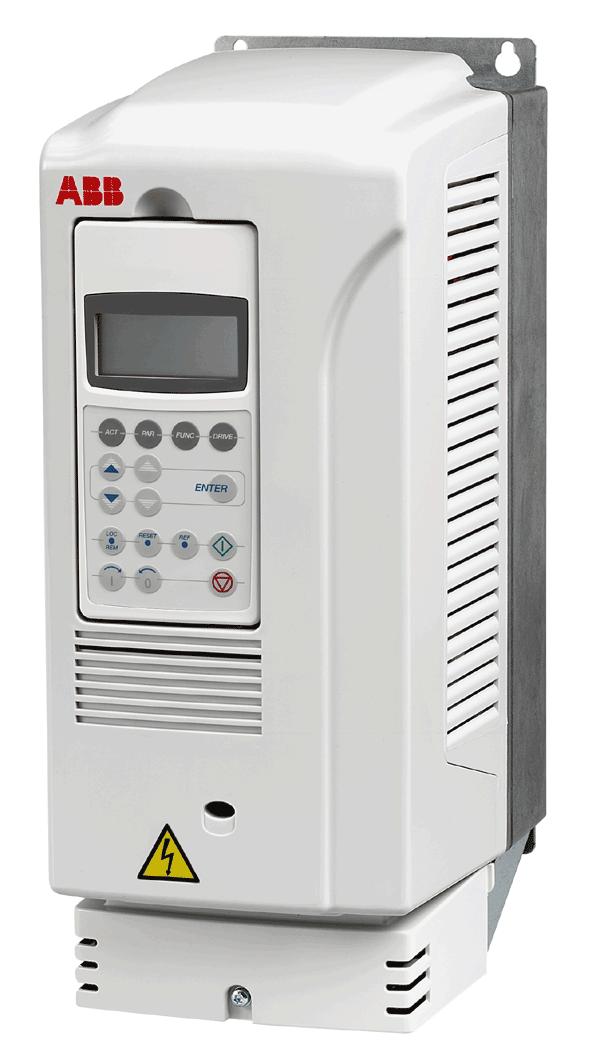

Santerno AC Drive (Inverter) , ACS 800

Product Presentation:

Product Name :  AC Drive , Inverter VFD (Variable Frequency Drive) , VSD (Variable Speed Drive)

Drive Model :   ACS 800

Manufacturer :   ABB

Manufacturing Country :  Finland

Power Range :   0.55 - 5600  KW

Descriptions :  ABB industrial drives are designed for industrial applications, and especially for applications in process industries such as the pulp & paper, metals, mining, cement, power, chemical, and oil & gas industries.

ABB industrial drives are highly fl exible AC drives that can be confi gured to meet the precise needs of these applications, and hence order-based confi guration is an integral part of the offering. These drives cover a wide

range of powers and voltages, including voltages up to 690 V. ABB industrial drives come with a wide range

of inbuilt options. A key feature of these drives is programmability, which makes adaptation to different applications easy.

Wall-mounted drives, ACS800-01

The wall-mounted drive, ACS800-01 offers all that you need up to 200 kW. All important features and options are built inside the drive: line choke, EMC fi lter, brake chopper etc. The user gets everything in a single and complete IP21 or IP55 package. Still the drive is also extremely small. A wide range of software alternatives makes this drive suitable for any application.

Wall-mounted drives, ACS800-01 for marine applications

The type approved ACS800-01 marine drive provides advanced reliability and availability at sea. The drive fulfi l marine and offshore requirements, and the design and operation have been tested according to marine type approval requirements. The ACS800-01 has marine type certifi cation from ABS, BV, DNV, GL, Lloyd’s, and RINA.

Wall-mounted regenerative drives, ACS800-11

The wall-mounted regenerative drive, ACS800-11 is equipped with active supply unit. It offers a full performance regenerative drive in a single compact package. All important features and options including an LCL line fi lter and EMC fi lter are built inside the

drive. The power ratings start from 5.5 kW and go up to 110 kW. It is available with IP21 protection degree.

Wall-mounted low harmonic drives, ACS800-31

The wall-mounted low harmonic drive, ACS800-31 offers a unique harmonics solution that is incorporated into the drive. It has exceptionally low line harmonic content and it fulfi ls even the strictest harmonic requirements without external fi ltering devices or

multi-pulse transformer arrangements. The wall-mounted ACS800-31 offers a low harmonic drive in one complete package up to 110 kW. Similar to other wall-mounted drives, it has all the important features and options built inside the drive. It is available with IP21 protection degree.

Free-standing drives, ACS800-02

The free-standing drive, ACS800-02 is a new innovative bookshelf enclosure. The power ratings start from 45 kW and go up to 560 kW. The ACS800-02 is available in an extremely compact IP21 enclosure and uniquely offers two mounting directions. It also offers

a wide range of built-in options including EMC fi lters, brake choppers, line apparatus such as fuse switch and contactor.

Cabinet-built drives, ACS800-07

The cabinet-built drive, ACS800-07 offers standardized confi gurations that can be adapted to any application. It covers a wide power range up to 2800 kW and is very compact, the largest drive is only 3.2 meters wide. It is available with IP21, IP22, IP42, IP54 and IP54R protection degrees. A wide range of built-in options is available and application engineering services can be offered when customization is needed

Liquid-cooled drives, ACS800-07LC

ACS800 liquid-cooled frequency converter offers robust design for medium and high power applications. The compact size with a totally enclosed cabinet is optimised for harsh environmental conditions.The ACS800 liquid-cooled product series provides advanced reliability for both industrial and marine sector. Liquid cooling minimises the noise level and improves heat transfer without a need for air conditioning equipment.

Cabinet-built regenerative drives, ACS800-17

The cabinet-built drive, ACS800-17 is equipped with active supply unit. It is intended to drive applications where regenerative operation is required. It covers a wide power range and has an extensive range of standardized confi gurations that can be adapted to any application. It is available with IP21, IP22, IP42, IP54 and IP54R protection degrees.

Cabinet-built liquid-cooled regenerative drives, ACS800-17LC

The ACS800 liquid-cooled regenerative drive incorporates two technologically advanced solutions in one compact, totally enclosed cabinet: liquid cooling provides high reliability while regeneration delivers signifi cant energy savings. Covering a wide power

range from 55 to 5200 kW, the drive is available with IP42 as standard and IP54 as an option. The design is marine type approved.

Cabinet-built low harmonic drives, ACS800-37

The ACS800-37 cabinet-built drive is a low harmonic solution in the power range of 37 kW up to 2700 kW. It offers a unique harmonics solution that is incorporated into the drive. Like other cabinet-built single drives, it has a wide range of standardized confi gurations and is available with IP21, IP22, IP42, IP54 and IP54R protection degrees.

Cabinet-built liquid-cooled low harmonic drives, ACS800-37LC

The ACS800-37LC is a cabinet-built liquid-cooled low harmonic drive and therefore offers a solution for both low harmonic needs and harsh ambient conditions. Liquid cooling removes 98% of the heat generated, so the totally enclosed cabinet requires no additional air

conditioning. With a power range from 55 to 5200 kW, this drive meets the requirement of many applications.It is especially suitable for use in the marine sector

Application :   Crane , Forming – Sizing , Steel , ………..

Production status :  Stop Production

Replacement Product :   ACS800 – ACS 880

Manufacturer Company Website : http://new.abb.com/drives
